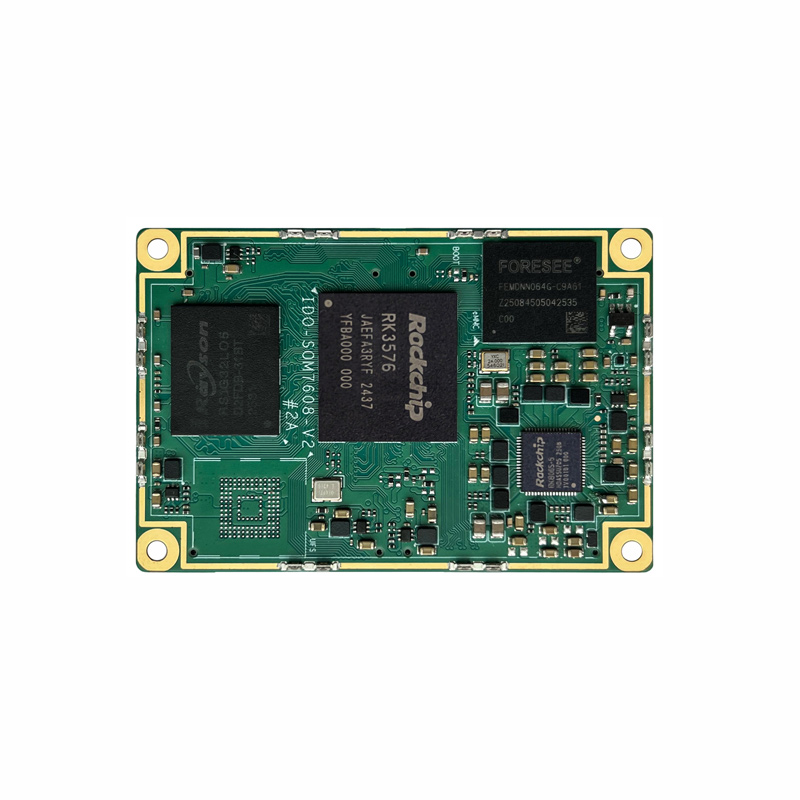

RK3576 SOM
A scalable RK3576 system-on-module for edge AI, industrial vision and multimedia terminal development.
描述
Modular computing platform for edge AI and industrial vision
The RK3576 SOM integrates key processing, memory and storage functions in a compact module, helping device makers reduce mainboard design and system-integration time.
Buyer value
- Suitable for edge inference, industrial vision, smart terminals and multimedia equipment
- Module-and-carrier design supports interface tailoring, upgrades and product-family development
- Sample validation, carrier-board design, OS adaptation and production-introduction support available
Project inquiry
Memory, storage, interface and temperature configurations are confirmed against the project specification. Send your interface list, volume estimate and target schedule.
Chip Selection and Industry Applications
Choose a platform by evaluating CPU, NPU, vision pipeline, interfaces, power, OS support and production schedule together. TOPS alone does not determine system-level results.
| Platform | CPU | NPU | Multimedia / Vision | Best-fit Direction |
|---|---|---|---|---|
| RK3506 | 3× Cortex-A7 | — | Control / audio / lightweight HMI | HMI, PLC, voice modules, serial terminals |
| RK3562 | 4× Cortex-A53 | 1 TOPS | 4K30 decode; 13 MP ISP | Low-power AIoT, HMI, POS, data acquisition |
| RK3566 | 4× Cortex-A55 | up to 1 TOPS | 4K60 decode; 8 MP ISP | SBC, smart display, IoT gateway, lightweight edge AI |
| RK3576 | 4× Cortex-A72 + 4× Cortex-A53 | 6 TOPS | 8K30 decode; 16 MP ISP | Industrial gateway, machine vision, robotics, multi-display HMI |
| RV1126B | 4× Cortex-A53 | 3 TOPS | 4K45 encode; 12 MP ISP / 8 MP AI-ISP | AI IPC, access control, industrial vision, multi-camera terminals |
Related Applications
- Machine vision and industrial inspection
- Industrial gateways and edge AI
- Robotics, AGV and sensor fusion
- Multi-display HMI, energy and medical control
Compiled from official Rockchip product pages and brief datasheets. Confirm interfaces, industrial temperature, memory and OS support against the selected carrier board and BSP release.
