RV1126B SOM | 3 TOPS Edge AI Vision System-on-Module | SOM1126B-S1
RV1126B SOM with quad Cortex-A53, up to 3 TOPS NPU and 12 MP ISP for AI cameras, industrial vision and edge AI product development.
描述

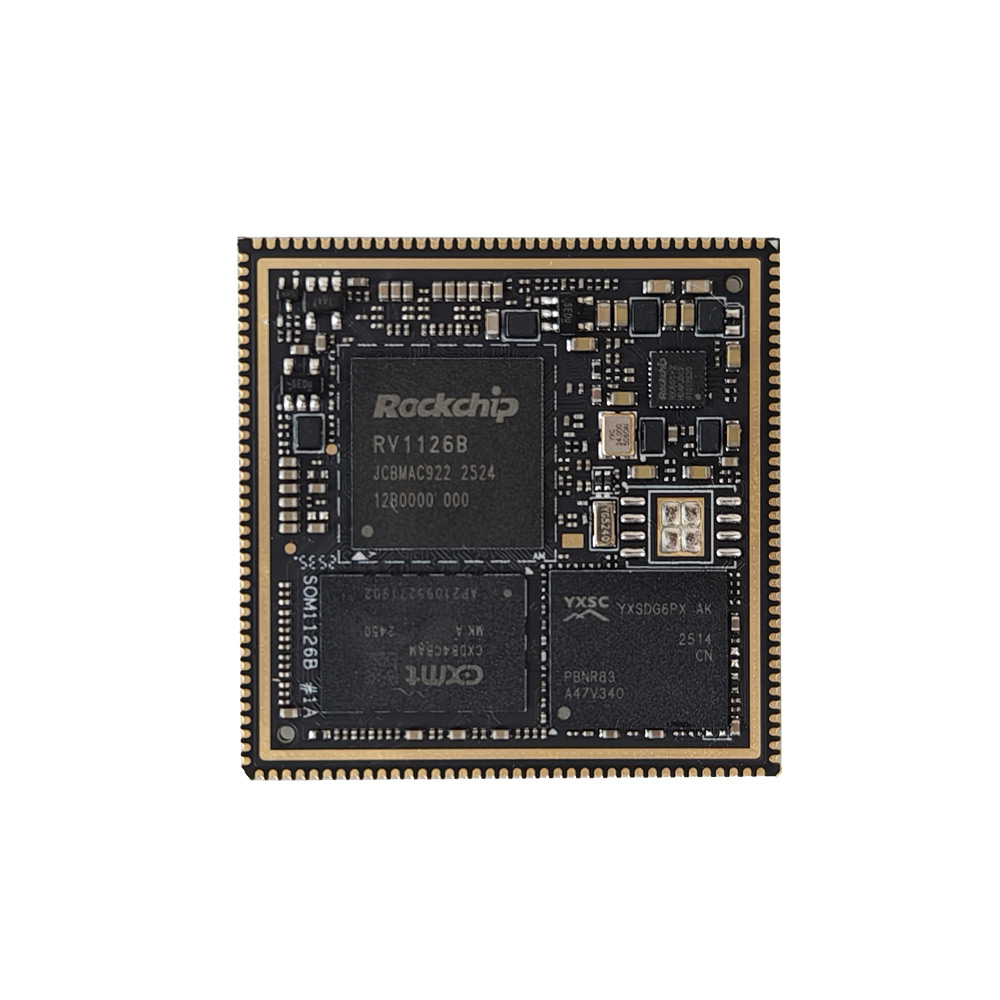

RV1126B SOM for Edge AI Vision Products

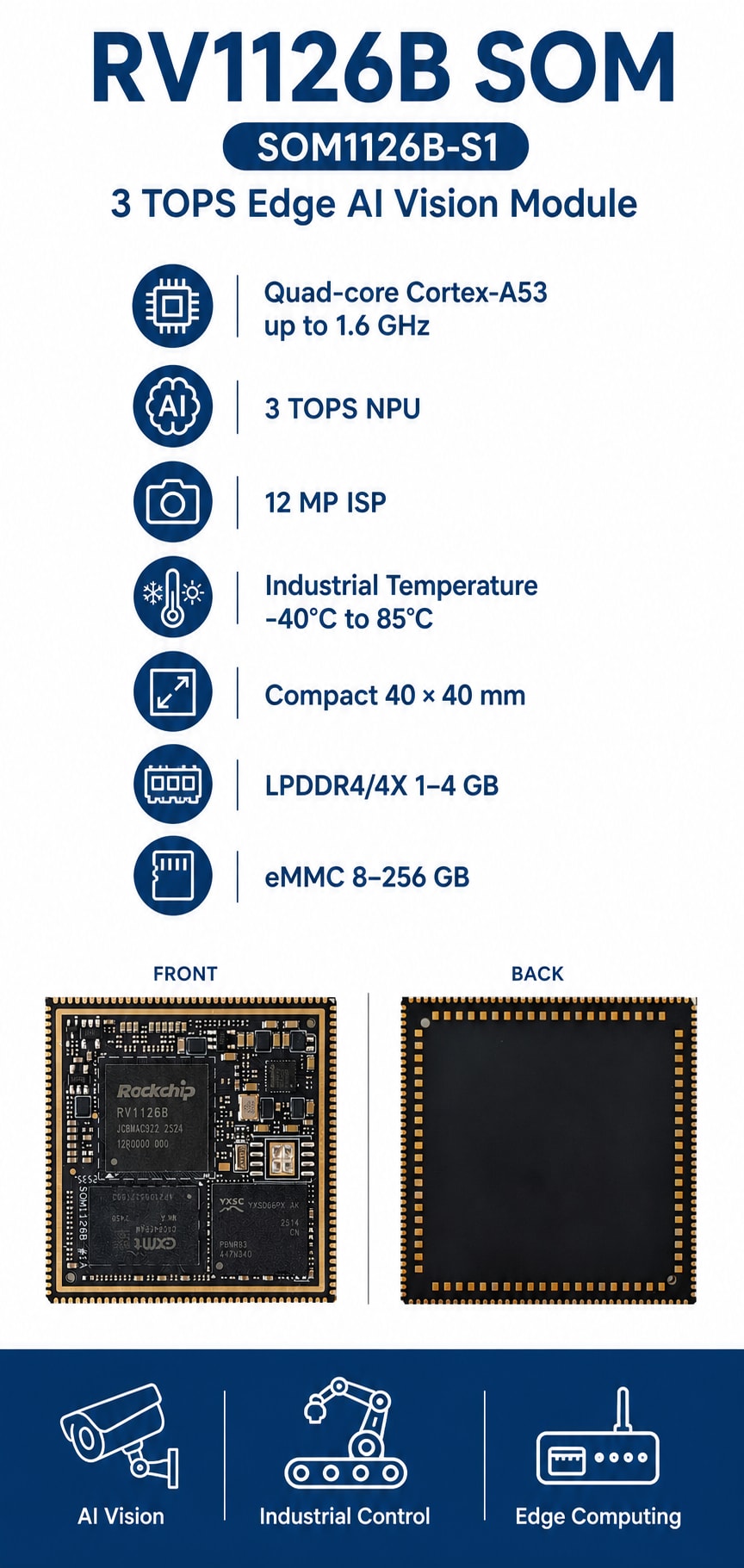

The SOM1126B-S1 system-on-module integrates a quad-core Cortex-A53 CPU, up to 3 TOPS NPU performance and an ISP supporting up to 12 MP. It is designed for AI cameras, machine vision, industrial inspection and compact multimodal edge devices.
Why choose this module
- Edge AI inference: up to 3 TOPS for detection, analytics and lightweight multimodal workloads.
- Vision-first architecture: integrated ISP and post-processing for camera-centric products.
- Faster product development: move core computing, memory and critical power design onto a reusable SOM.
- Productization support: evaluation carrier board, reference materials, BSP adaptation and OEM/ODM services available.
RV1126 vs RV1126B
| Item | RV1126 | RV1126B |
|---|---|---|
| CPU | Quad Cortex-A7 | Quad Cortex-A53 |
| NPU | Up to 2 TOPS | Up to 3 TOPS |
| ISP | Up to 14 MP | Up to 12 MP |
| Best fit | Established vision platforms | New edge AI designs needing stronger CPU and NPU capability |
Migration note: interface compatibility and software migration must be validated against the carrier board, camera sensors and BSP release. Do not treat the two SoCs as drop-in replacements based on TOPS alone.
Applications
AI IPC, smart access control, machine vision, industrial inspection, video analytics, robotics vision and smart retail.
Development and manufacturing support
Share your target sensors, interfaces, model workload and estimated volume for configuration review and an OEM/ODM proposal.
